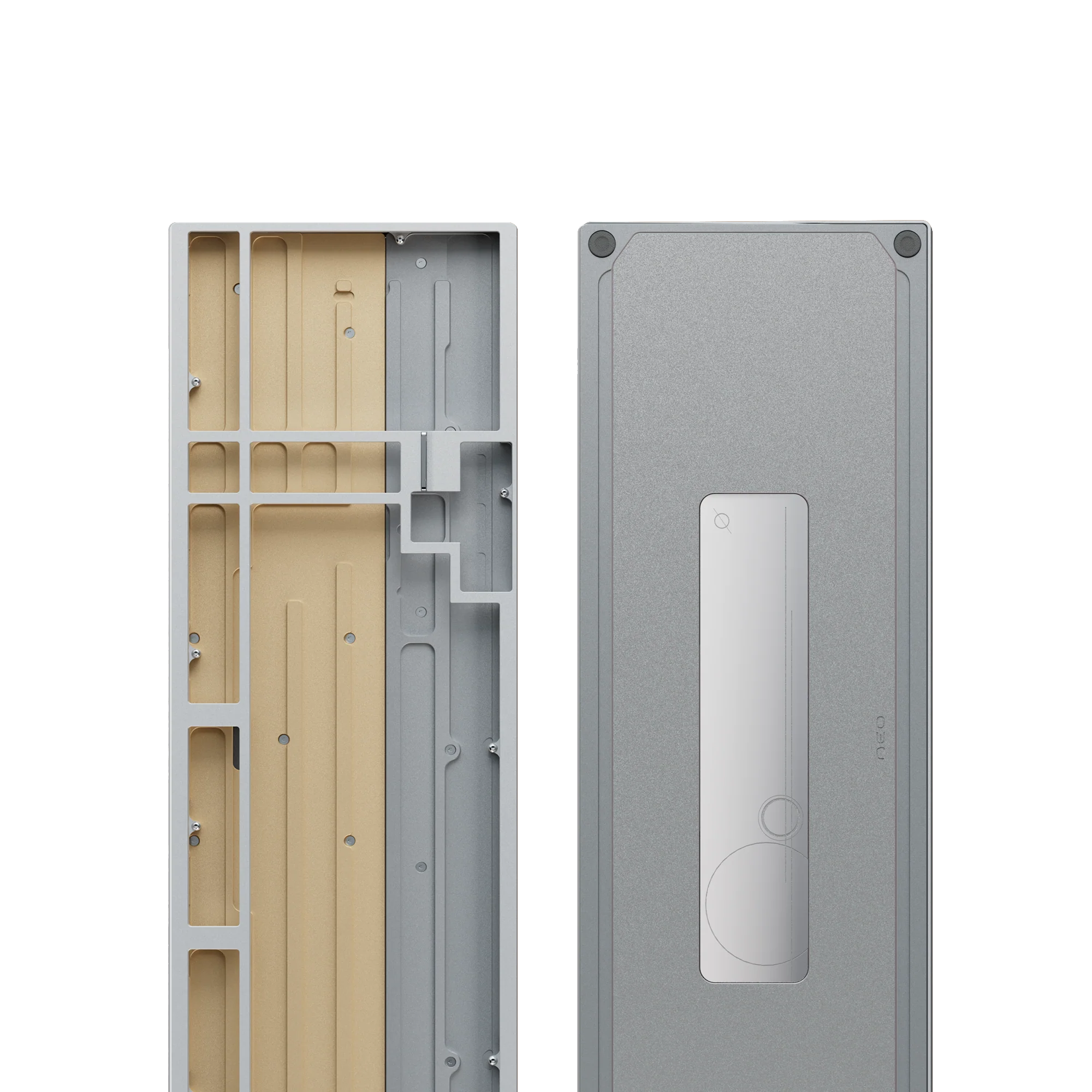

Neo Studio Neo98 Custom Mechanical Keyboard with Tri-mode PCB
Neo Studio Neo98 Custom Mechanical Keyboard with Tri-mode PCB
Neo Studio Neo98 is a 98 percent custom mechanical keyboard kit for Australian users who want numpad utility without the bulk of a full-size keyboard. It keeps the practical keys for work and spreadsheets, while giving the build the sound and feel people expect from a Neo custom kit.
- Layout: 98 percent custom keyboard with numpad utility.
- Size: 398.4 x 133.8 mm.
- Front height: 17.6 mm.
- Typing angle: 7 degrees.
- PCB: tri-mode hotswap PCB.
- Battery: two 2200 mAh batteries in tri-mode builds.
- Mounting: Poron gasket, silicone gasket and top-mount support.
- Available finishes: Anodized Slate Blue / Spray-coated Golden Weight, Anodized Orange / Spray-coated Golden Weight, Anodized Orange / Spray-coated Silver Weight, Anodized Black / Spray-coated Golden Weight and Anodized Black / Spray-coated Silver Weight.
Choose Neo98 if you still need a numpad but want a cleaner, more enthusiast-focused keyboard than a standard office full-size board.
Couldn't load pickup availability
Neo98
Born from community passion, our Neo98 option offers compact versatility. Both embody our design philosophy: understated elegance, exceptional detail. Choose the layout that fits your style.
The Crowning Glory
The design is minimalist in appearance, yet every detail is meticulously engineered. The badge is crafted from mirror-polished stainless steel, with every surface meticulously ground. Like a platinum ring, it sits nested into the keyboard with quiet precision.
Optional Weight
Featuring a generously sized stainless steel weight, available in both mirror PVD and spary-coated finish options.
Bottom Case Acoustic Chamber

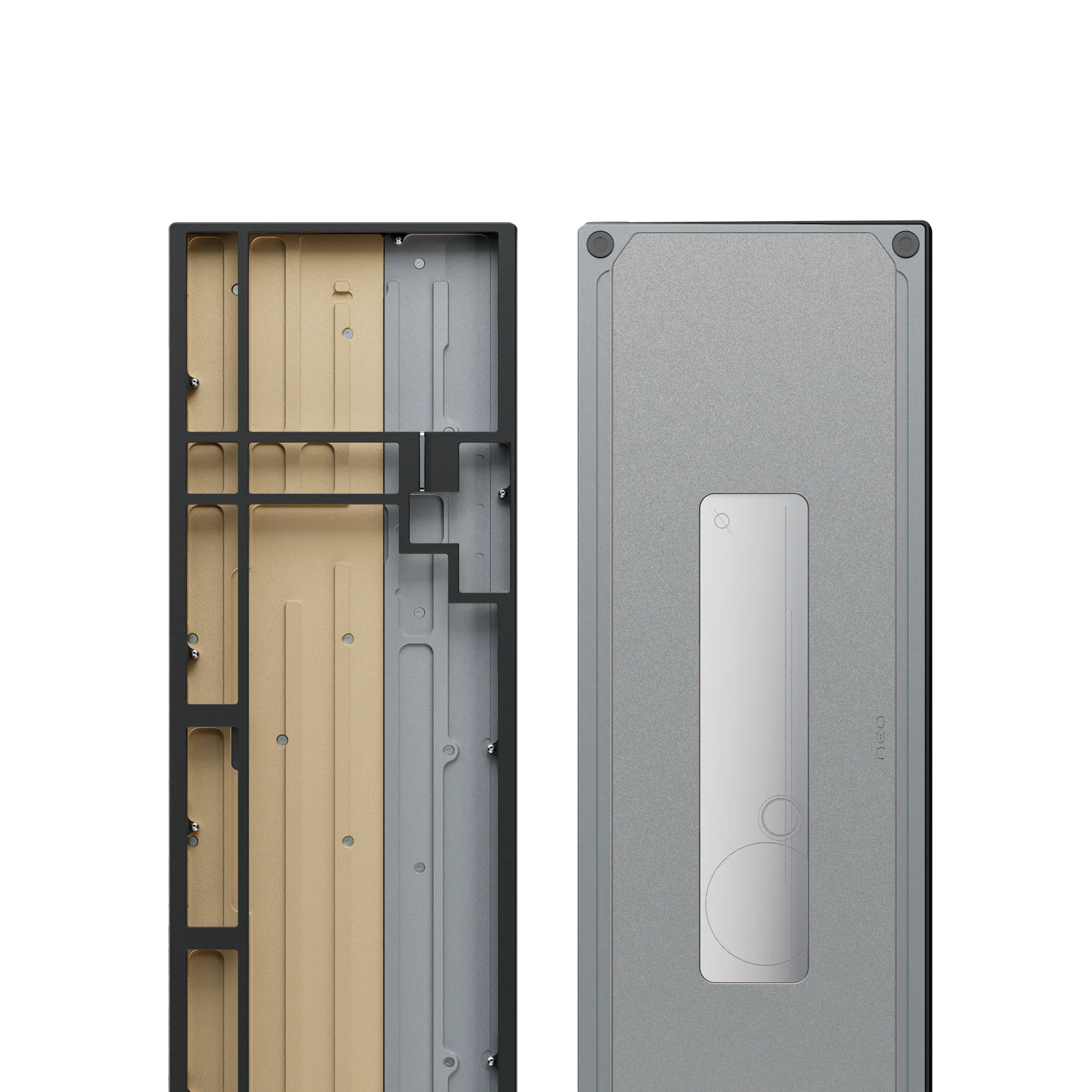

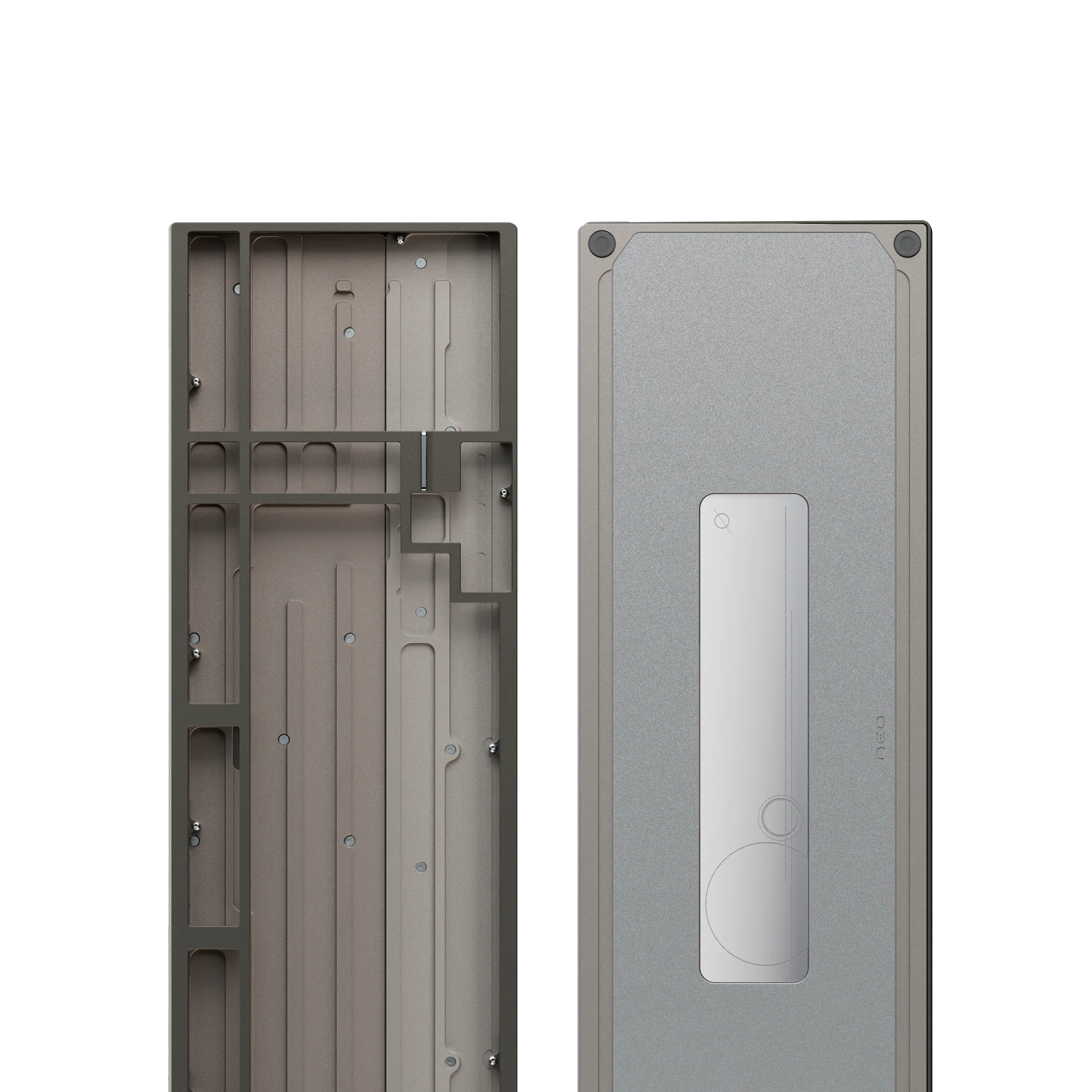

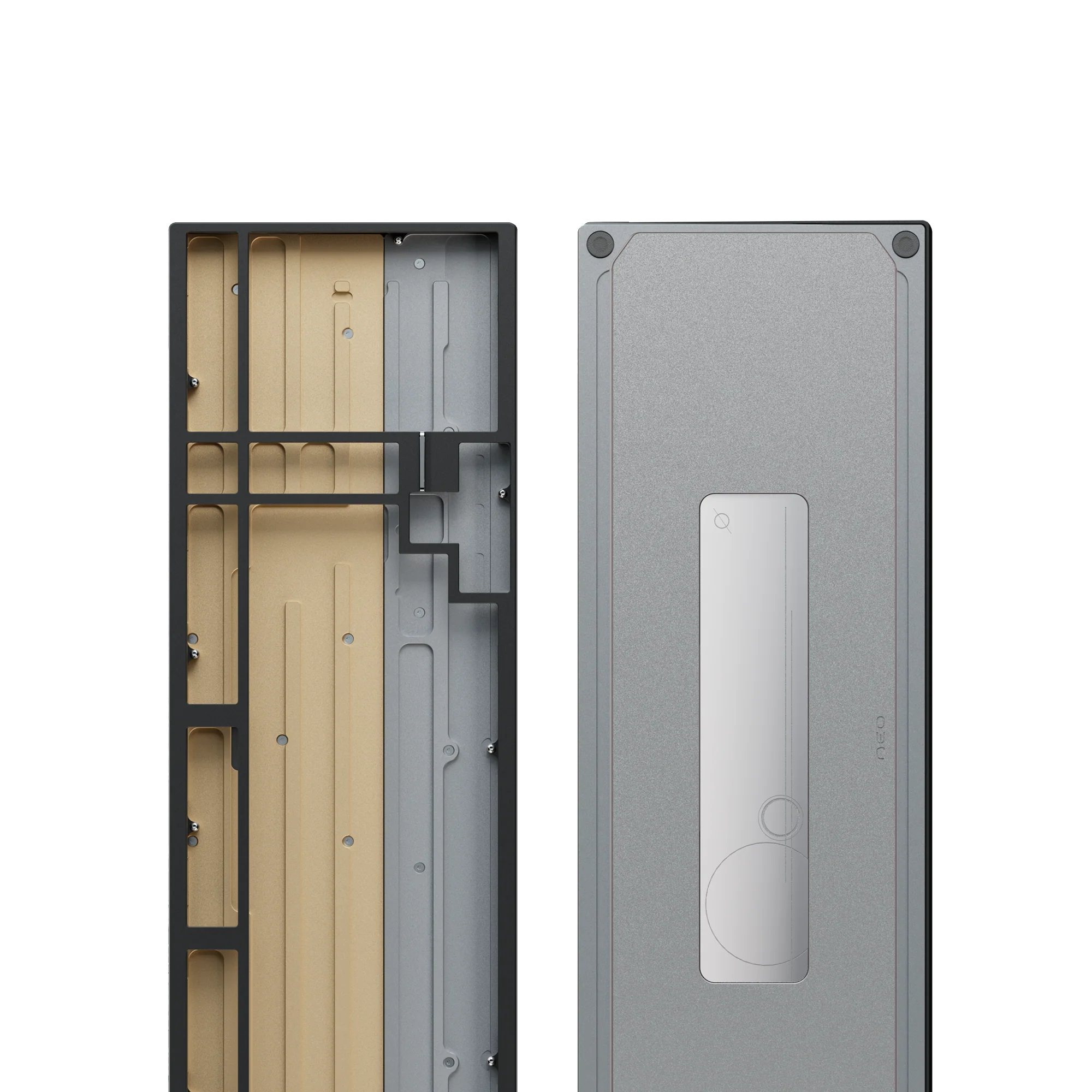

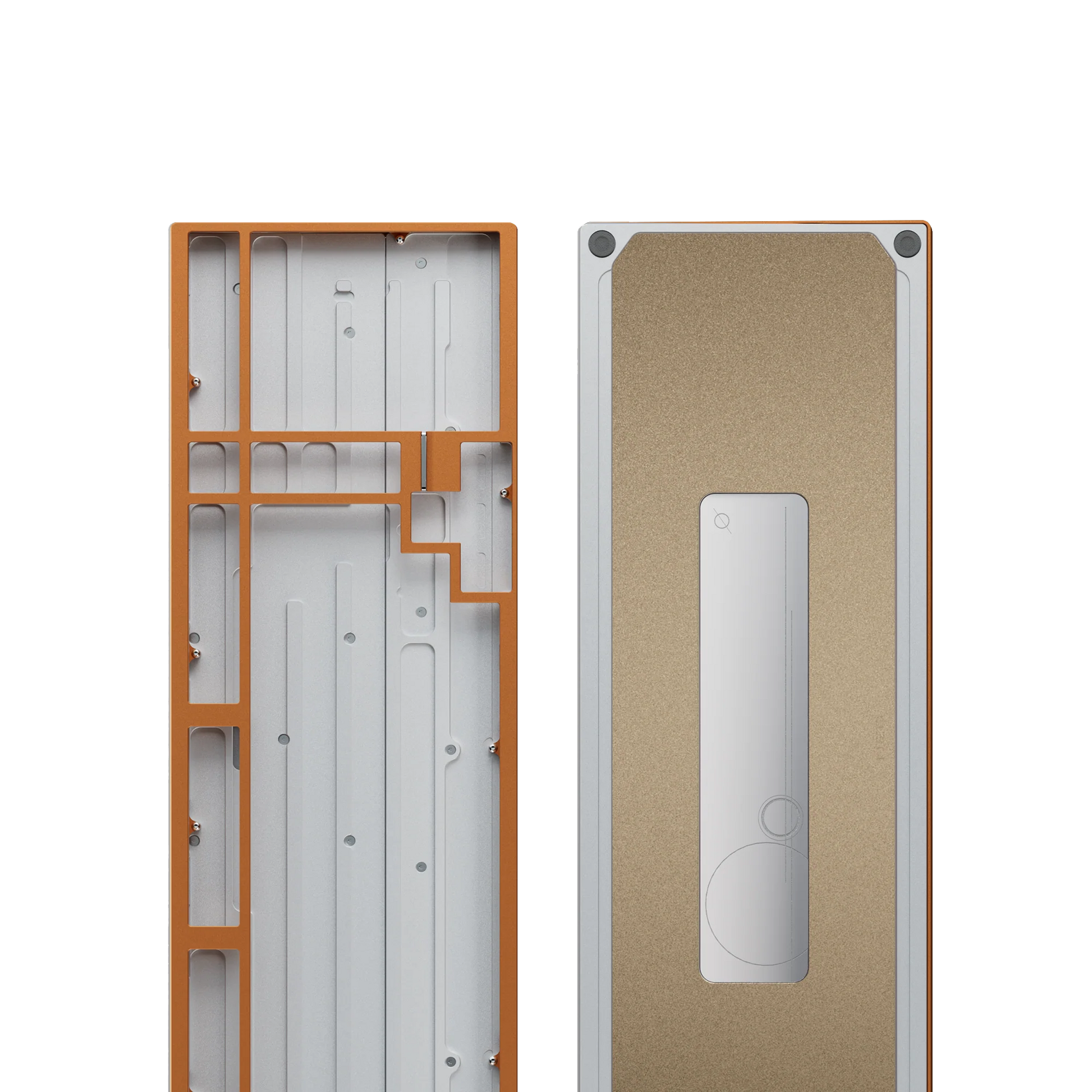

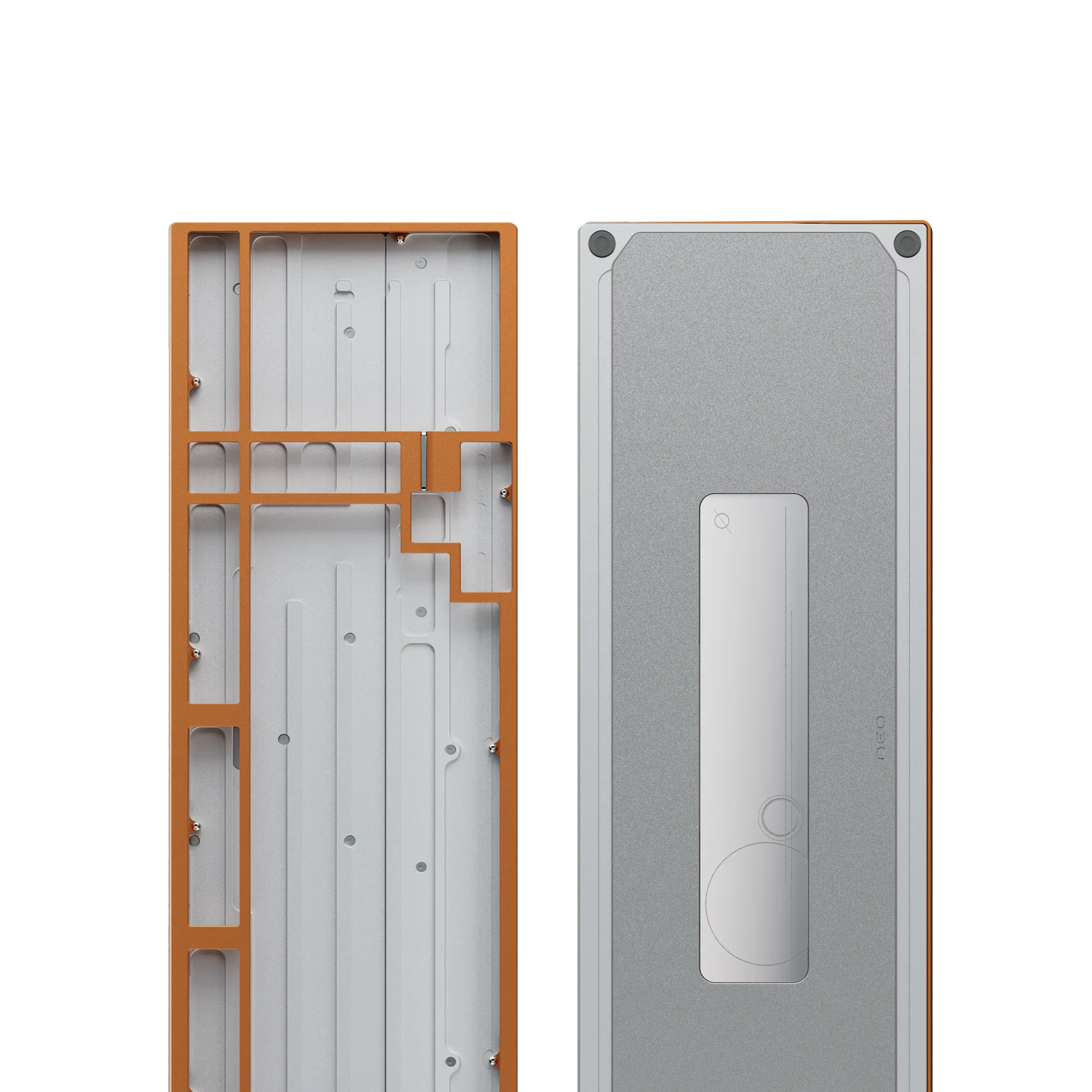

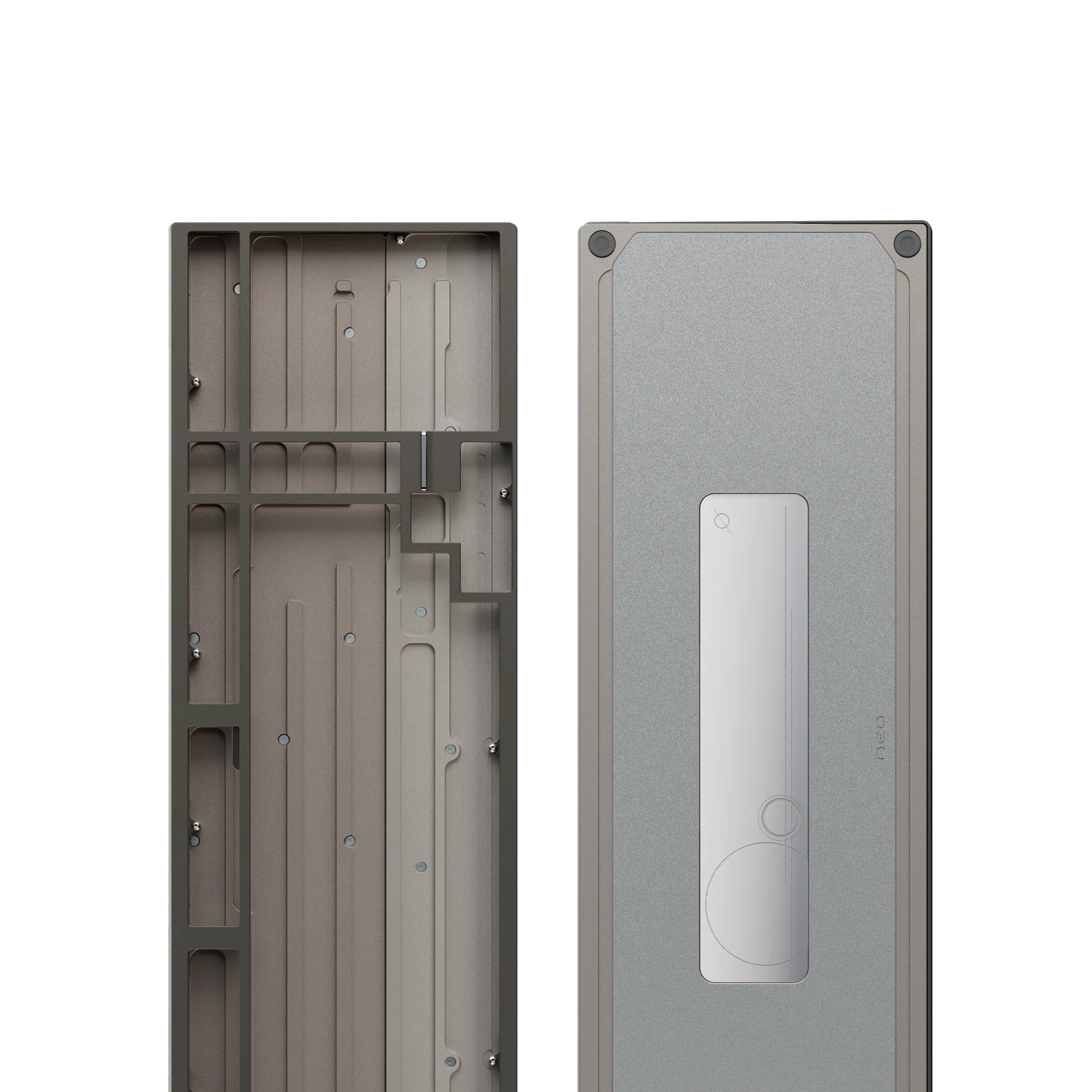

To suppress the hollow cavity resonance from the bottom case, we adopted a chamber-segmented design. This reduces vibration frequency and enhances overall acoustic performance.
Forcebreak
We've added a forcebreak layer at the contact points between the top and bottom cases, creating a soft barrier between the metal surfaces to dampen vibration noise.
Structure
For Neo75, we use the well loved Poron Gasket design from the Neo80 Cu.Traditional poron gaskets rely on adhesive, which makes replacement difficult over time and often leaves residue. Our grooved structure eliminates the need for adhesive, holding the poron securely in place and making replacements easy.
Poron Gasket Mount
Silicone Gasket Mount
Top Mount

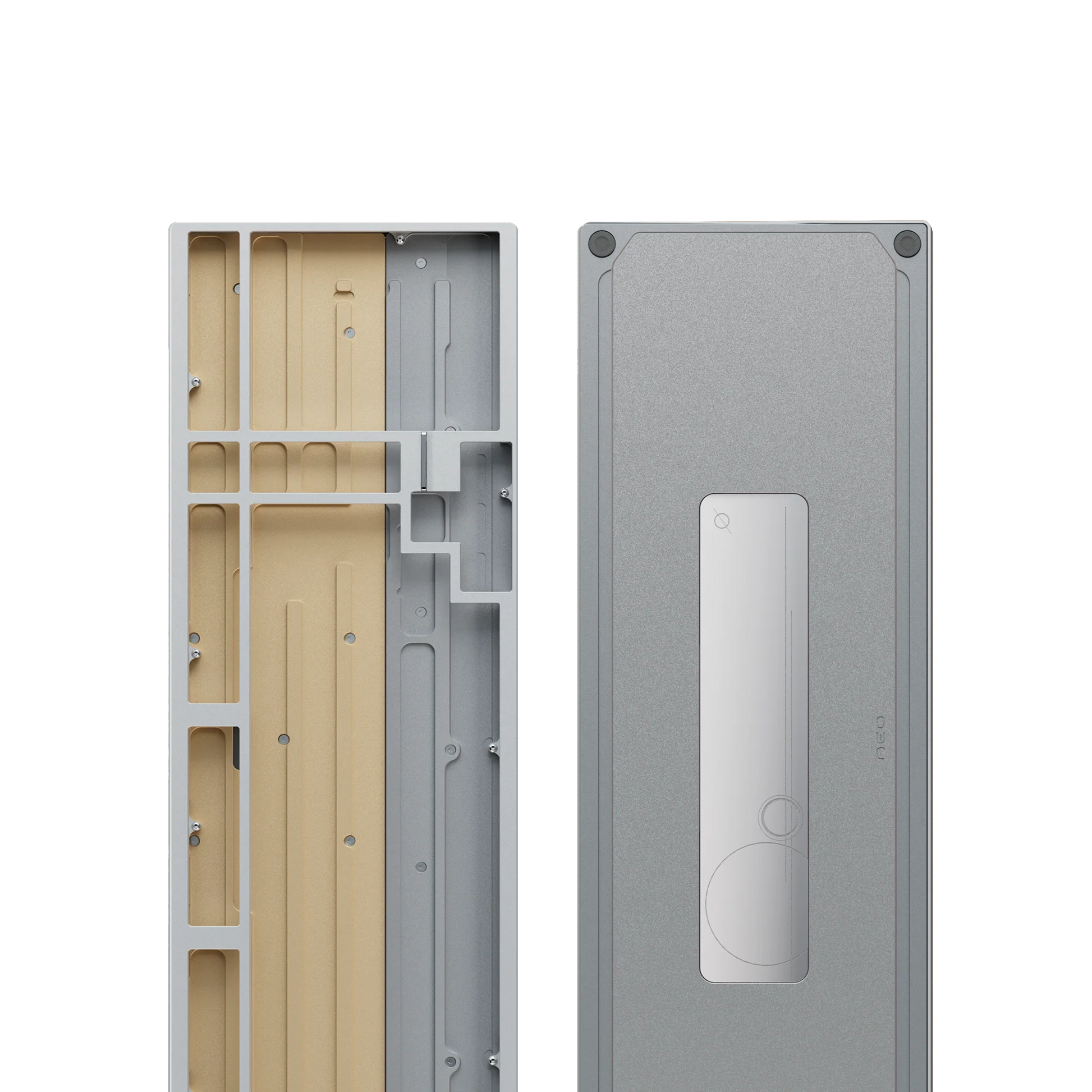

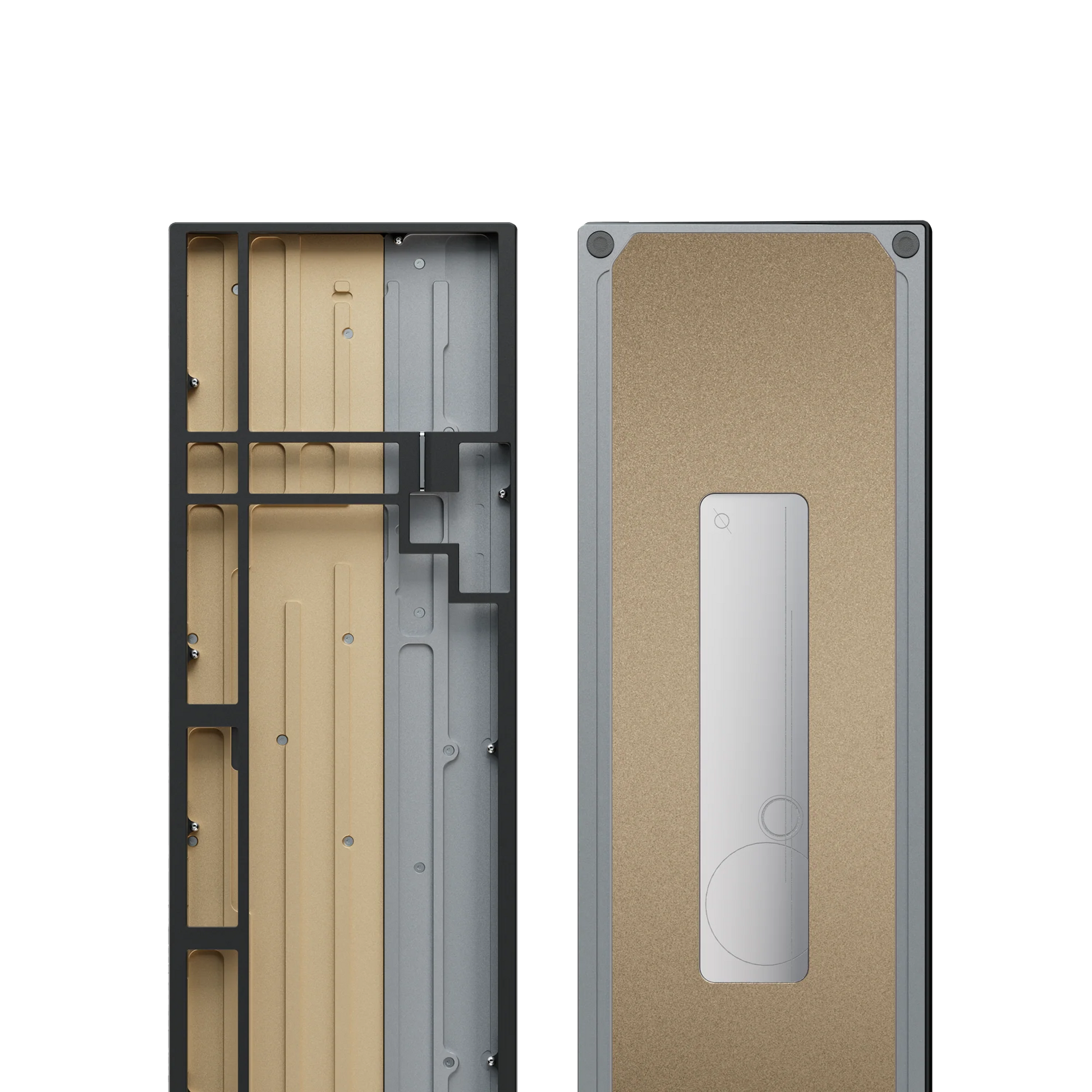

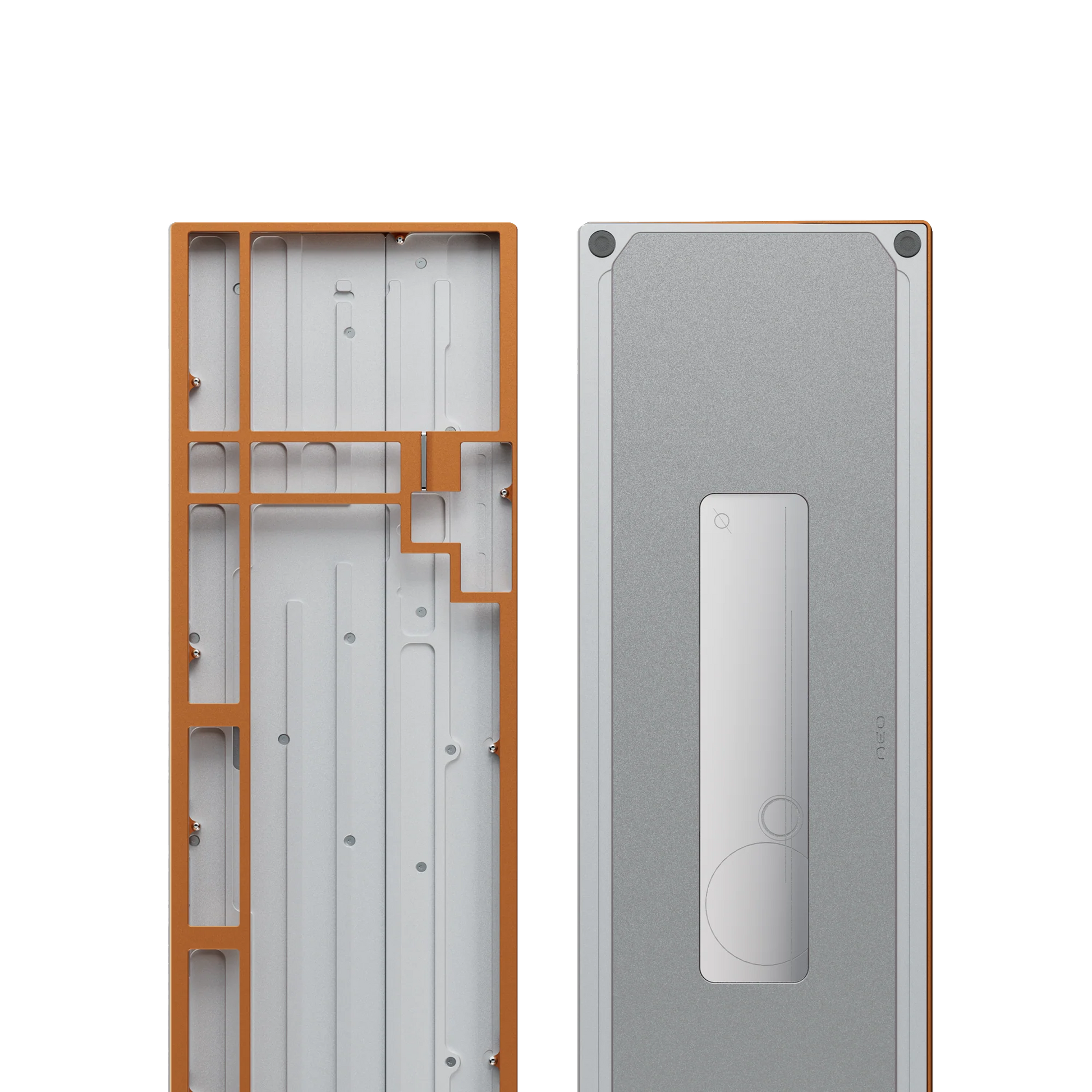

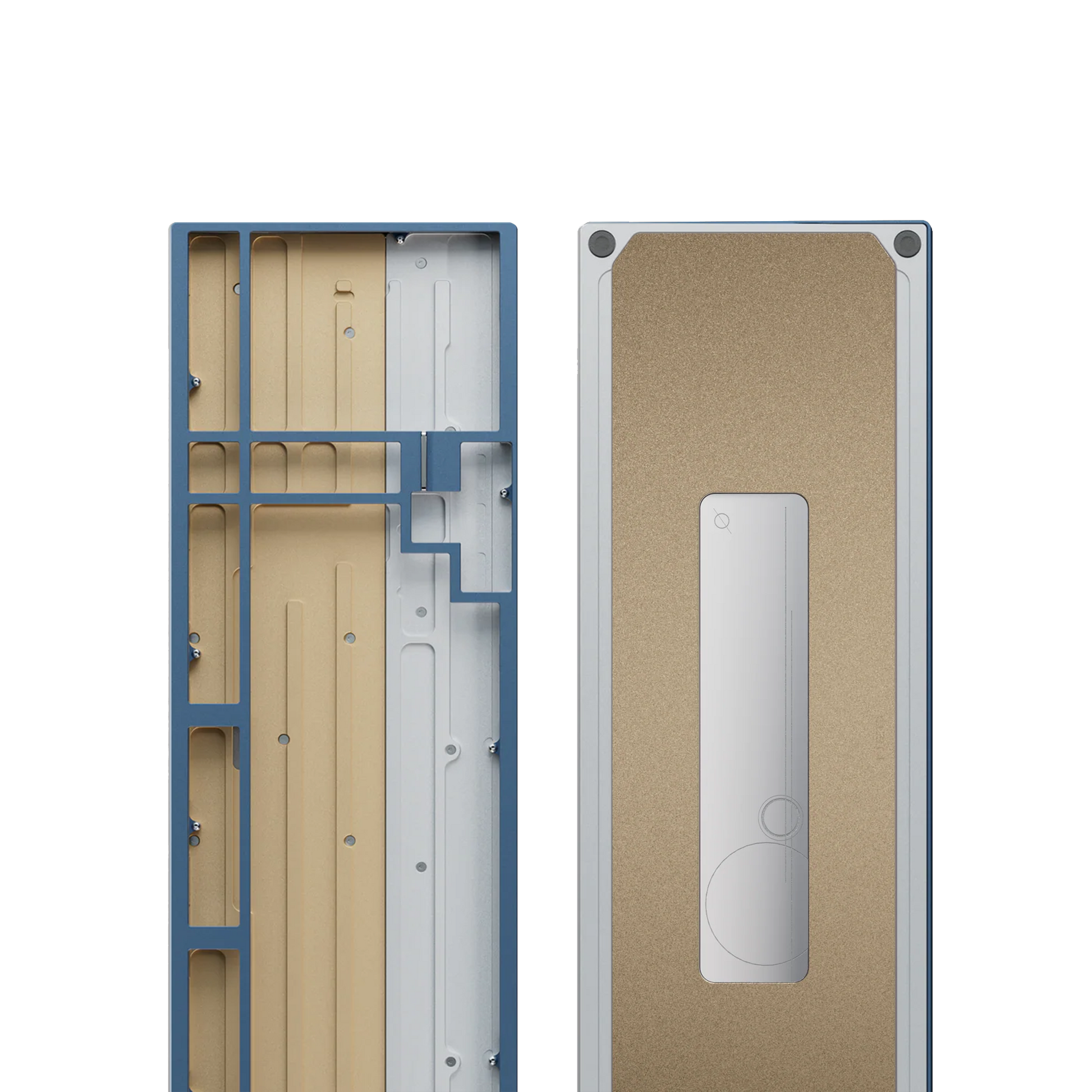

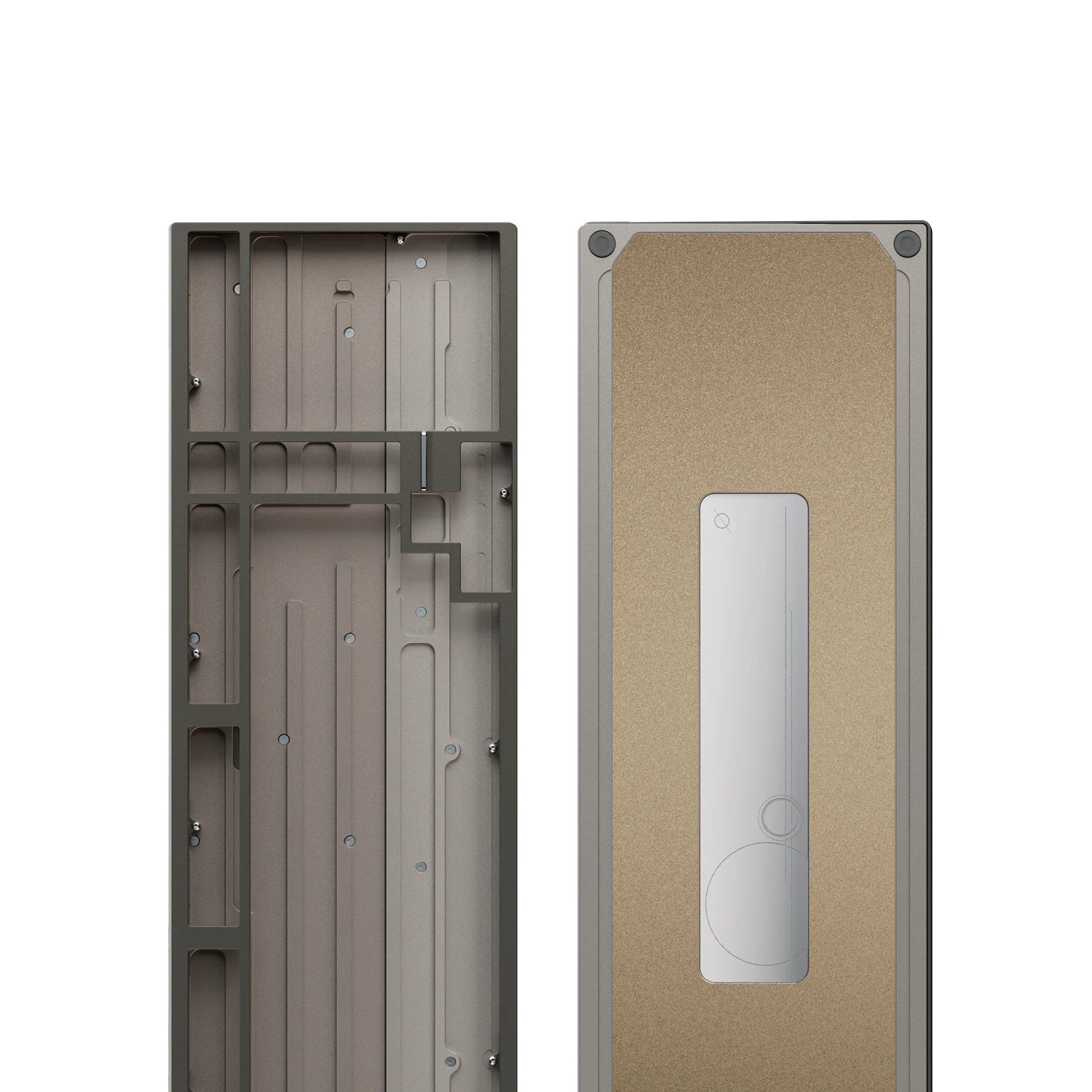

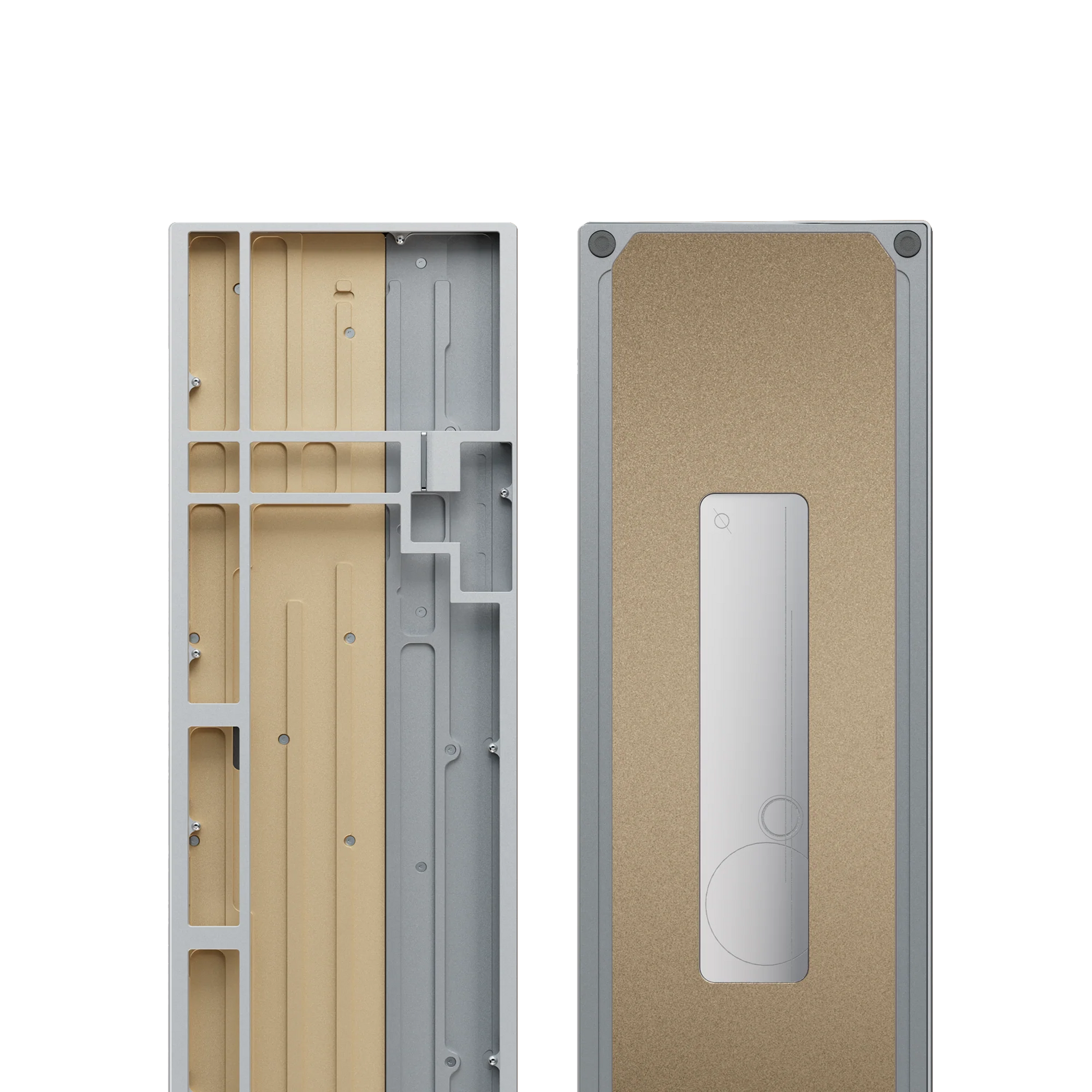

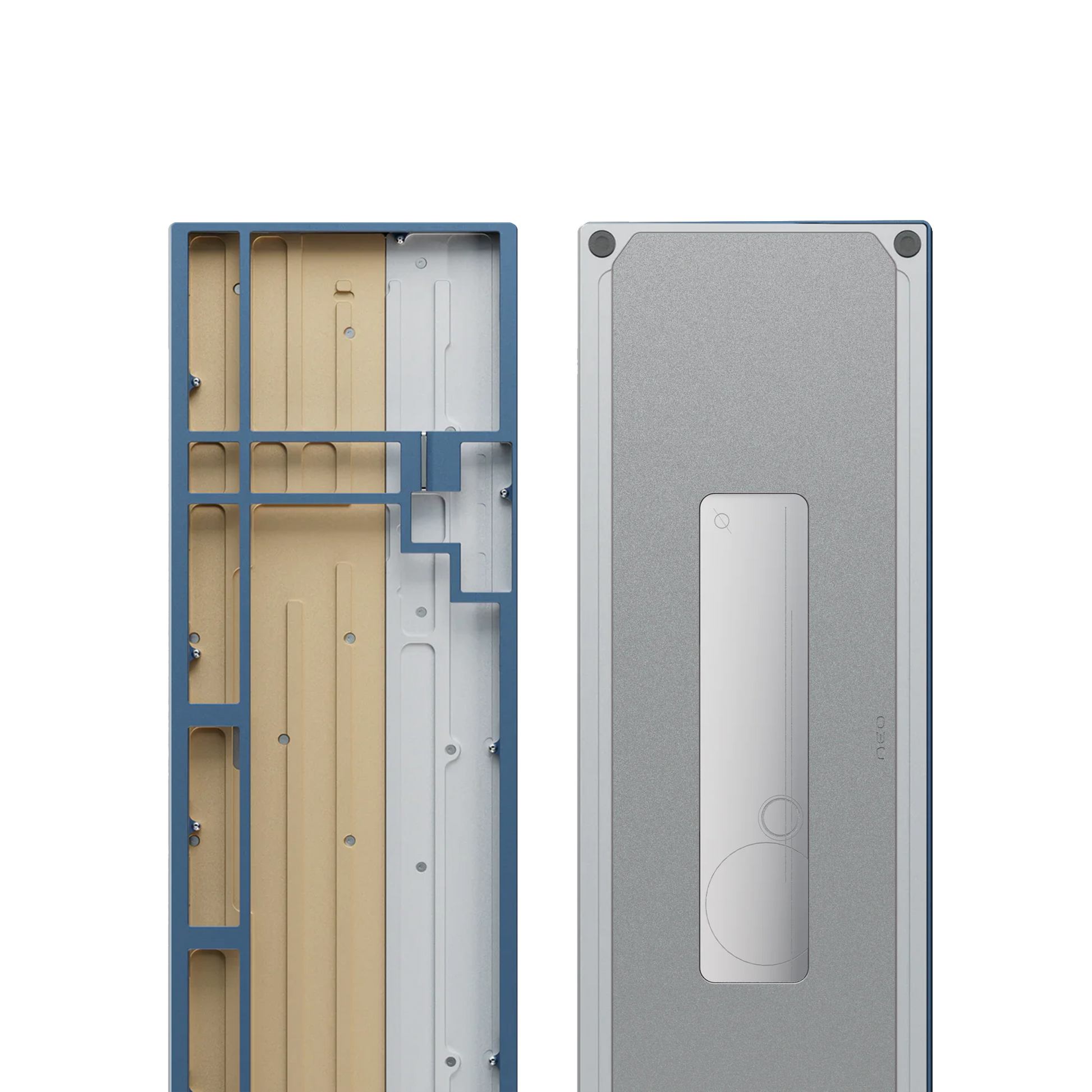

| Top Case Color (Aluminum) | Bottom Case Color (Aluminum) | Battery Cover Color (Aluminum) |
|---|---|---|
| Anodized Slate Blue | Anodized Silver | Anodized Light Gold |
| Anodized Taupe Grey | Anodized Warm Silver | Anodized Sand Gold |
| Anodized Orange | Anodized Silver | Anodized Silver |
| Anodized Black | Anodized Light Grey | Anodized Light Gold |
| Anodized Silver | Anodized Light Grey | Anodized Light Gold |
Essential Information
Specifications
Keyboard
Dimensions: 398.4 x 133.8mm
Front Height: 17.6 mm
Typing Angle: 7°
Weight
Tri-mode:
Case only: 1798 g
Package weight (Alu Plate): 3049 g
Content List
For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment.
PCB Kit
- PCB of your choice
- 1x PE sheet
- 1x PCB foam
- Tri-mode PCB comes with a 2.4GHz dongle
Plate of your choice
Poron case foam
PCB daughterboard and magnetic connectors—installed
9x Silicone gaskets, 9x long Poron gaskets, 18x short Poron gaskets and Top-mount mounting screws
5x Positioning silicone(grey)
LED diffuser
6x Rubber feet(grey)
Backup screws
Free Gifts(Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced):
- Keyboard carrying case
- Keyboard pouch
- 1x Keycap & Switch puller
- 1x Screwdriver
- 1 set of PCB clip-in NeoStab
- USB-C cable
