TTC Brother V2
Clicky tactile mechanical keyboard switches
TTC Brother V2 combines a tactile bump with a torsion-spring click mechanism. This five-pin mechanical switch uses a POM stem, PC housings and double-gold contacts, with 1.6mm nominal pre-travel for builders who want a clearly audible, tactile keypress.
- Clicky
- Torsion-spring mechanism
- 1.6mm
- Nominal pre-travel
- 5-pin
- PCB configuration
A click with a tactile bump
Brother V2 is designed around a torsion-spring sound mechanism and a 58gf nominal tactile force. Choose it because you enjoy audible feedback, not because you need a quiet keyboard.

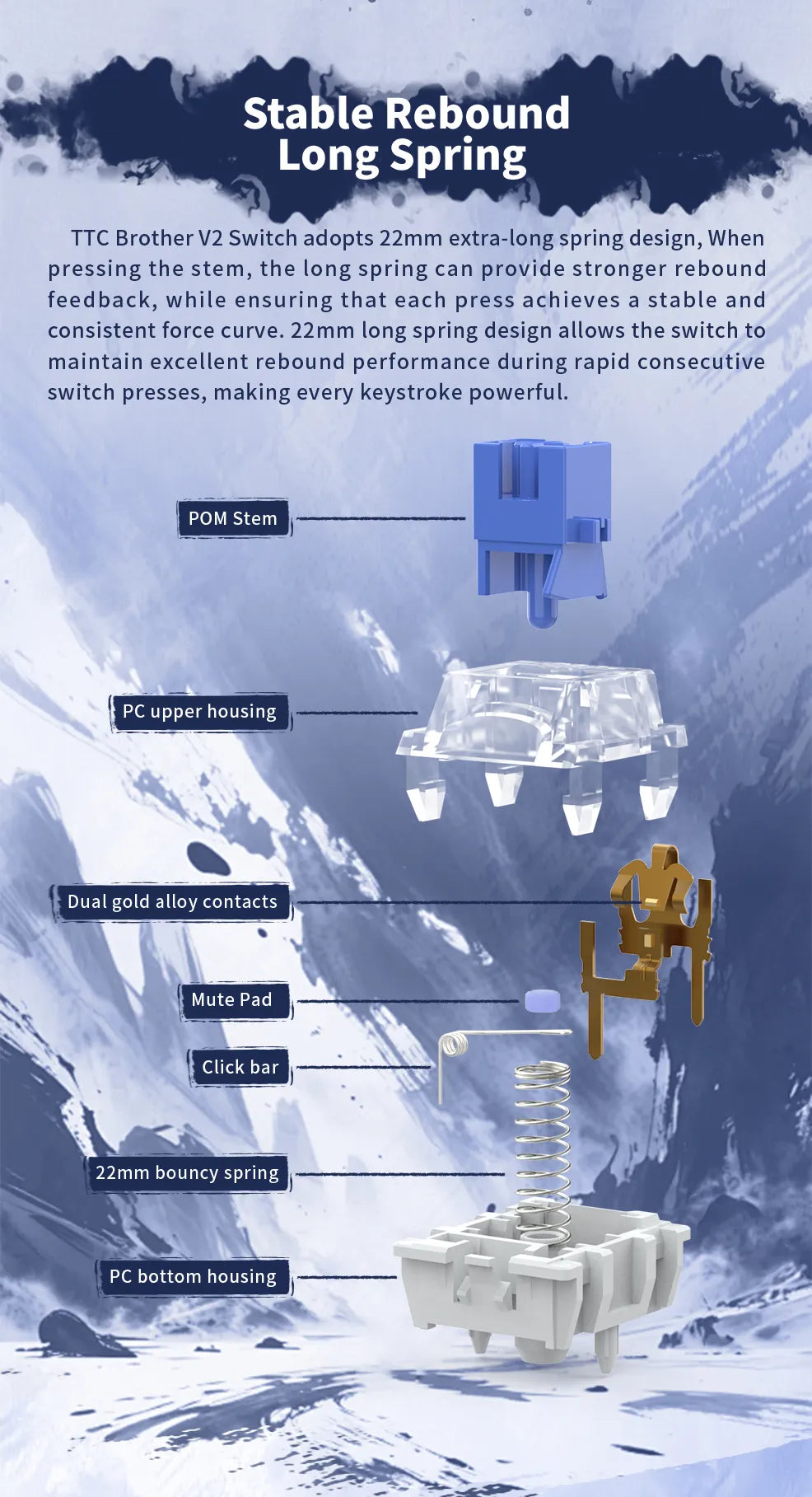

Inside the V2 design
TTC lists a 22mm spring, damping leaf spring, POM stem and PC upper and lower housings. Double-gold contacts complete the construction.
Check the board before the build
The five-pin configuration requires a compatible mechanical-switch PCB. TTC specifies 3.7mm total travel and a manufacturer-rated 80 million keystrokes.
Brother V2 specifications
Figures are supplied by TTC for this model. Durability ratings reflect manufacturer testing, not a promised service life or warranty period. Sound and feel vary with the keyboard build.
| Switch type | Clicky tactile mechanical |
|---|---|
| Operating force | 42gf (+20 / -10gf) |
| Tactile force | 58 +/- 10gf |
| Pre-travel | 1.6 +/- 0.4mm |
| Total travel | 3.7 +/- 0.4mm |
| Pins | 5 |
| Spring length | 22mm |
| Stem / housings | POM / PC |
| Contacts | Double-gold contacts |
| Rated durability | 80 million keystrokes |
| Quantity | 110 switches |
110 switches for your next build
This KEYDOM set includes 110 TTC Brother V2 switches. Keyboard, keycaps and tools are not included. Check your keyboard's key count and compatibility before ordering.
Before you choose
Is Brother V2 suitable for a quiet shared office?
Its audible click is intentional. A silent switch is the more suitable starting point if avoiding disturbance is your priority.
Is Brother V2 the same as Blue Clicky?
No. They are separate TTC products. The Brother V2 force, travel and construction figures should not be applied to the Blue Clicky model.
Will these work in my keyboard?
Check your PCB socket, switch pin layout, plate and keycap compatibility before ordering. These are mechanical switches, not drop-in replacements for Hall Effect or optical switches. A soldered keyboard requires soldering work to replace its switches.
