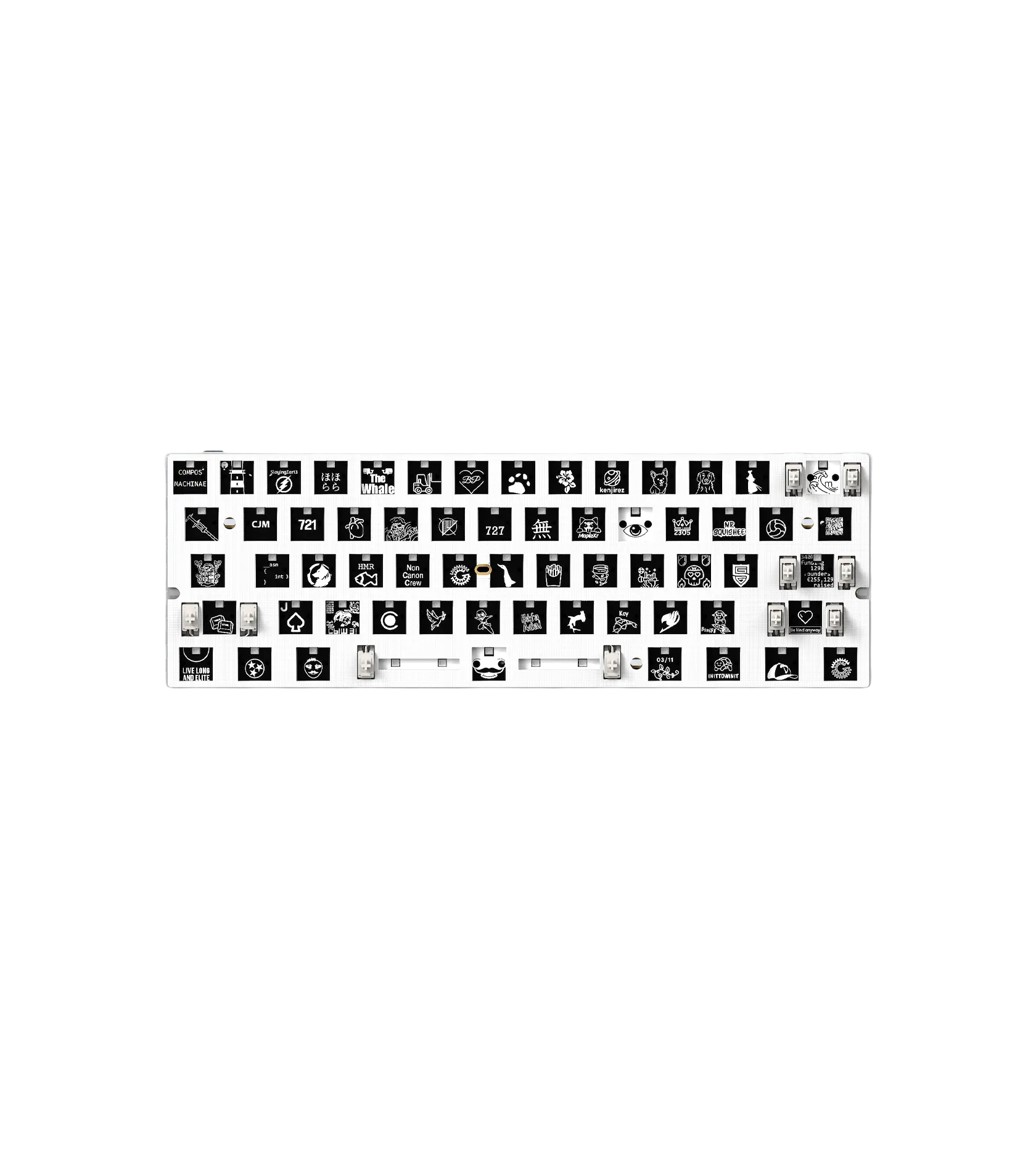

Wooting 60HE v2 Module
Wooting 60HE v2 Module
Wooting 60HE v2 Module is the core platform for Australian keyboard builders who want Wooting analog control inside a custom 60% build. It is made for users who care about Rapid Trigger, adjustable actuation and case swapping more than buying a finished pre-built keyboard.
- Layout: GH60 60% module.
- Switches: Lekker Tikken Medium magnetic switches.
- Switch plate: FR4.
- Stabilisers: screw-in stabilisers.
- Mounting: friction-fit design with HD Poron sandwich pad and silicone friction-fit pad.
- Polling rate: true 8000 Hz.
- Analog features: adjustable actuation, Rapid Trigger, Rappy Snappy and Mod Tap through Wootility.
- Cable: 2 m USB-C to USB-C braided cable included.
- Box contents include the module, switch and keycap puller, module puller, USB-C to USB-A adapter, spare PCBA screws, silicone plugs and postcard.
- This is a module, not a complete keyboard with case and keycaps.
Choose the module if you want the Wooting 60HE v2 gaming platform but plan to finish the build with your own case, keycaps and sound preference.
Couldn't load pickup availability
Build your own
You want the power of a Wooting, but you'd rather choose the other parts of the keyboard yourself. We've got you! The Wooting 60HE v2 Module includes just the PCB and a few essentials, without the keycaps, switches, or case. It also fits most aftermarket 60% cases.
All Wooting features
Wootility isn't just about RGB, Rapid Trigger and Adjustable Actuation. It's packed with features that give you more control, improving your gameplay or increasing productivity. The Wooting developers are continuously exploring new features, while refining existing ones.
Rapid Trigger
This feature resets and activates keys the instant you move, letting you repeat inputs in rapid succession without delay. This gives you quicker reactions and more precise control in every game.
Adjustable Actuation
This feature lets you adjust the actuation point of a key, giving you more control over your keypresses. You can set the actuation point to 0.1mm, 0.5mm, 1mm, 2mm, 3mm, or 4mm.
Rappy Snappy
This feature lets you choose two keys that will never be active at the same time. The key pressed deeper is the one that stays active. The only way to activate both at once is to bottom out both keys.
Snappy Tappy (SOCD)
Similar to Rappy Snappy, but instead of always activating the key pressed deeper, this feature lets you choose how to decide which key stays active when both are pressed, for example, prioritizing the one pressed last.
DKS (Dynamic Keystroke)
This feature lets you map multiple actions to a single key. With Hall-effect sensors, you can assign one action to a half-press, another to a full press, and even more on release. Perform combos with the press of a button.
Remap
You can remap any key on your keyboard to perfectly match your preferred layout. You can also remap function layers which are accessible by pressing the designated modifier key.
Wootility
Configuration software that makes setting up features, and customizing your keyboard settings easy and intuitive, while giving you the depth to fine-tune every detail.
Intuitive & Powerful
Set up features and RGB in seconds, with the option to dive deep when you want. Switch things on and play right away, or fine-tune every key to your style.
Lightweight & Accessible
Wootility is always accessible, as an app or in your browser, and up to 4 different profiles are saved on the keyboard itself and can be accessed anywhere.
