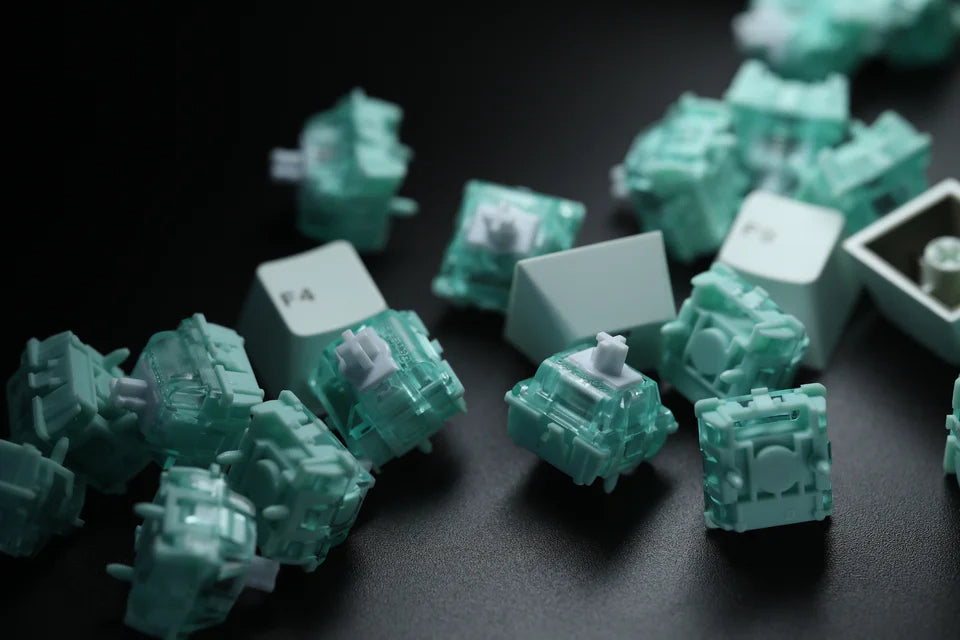

Gateron Magnetic Jade Pro Magnetic Switches

Gateron Magnetic Jade Pro is a Hall Effect linear switch for Australian magnetic keyboard users who want fast rebound, smooth travel and strong consistency for rapid trigger boards. It is not a standard mechanical switch, so it must be used with a compatible magnetic keyboard PCB.

• Switch type: magnetic Hall Effect linear.
• Initial force: 36 +/- 5 gf.
• Total travel: 3.5 +/- 0.1 mm.
• Initial magnetic flux: 120 +/- 8 GS on a 1.2 mm PCB.
• Bottom-out magnetic flux: 700 +/- 30 GS on a 1.2 mm PCB.
• Spring: customised 20 mm spring.
• Pre-lubed: yes.
• Lifetime: over 100 million keystrokes.
• Pack options at Keydom: 30PCS, 61PCS and 84PCS.

Check magnetic pole orientation and keyboard compatibility before ordering. These are for Hall Effect keyboards, not normal MX hot-swap PCBs.
