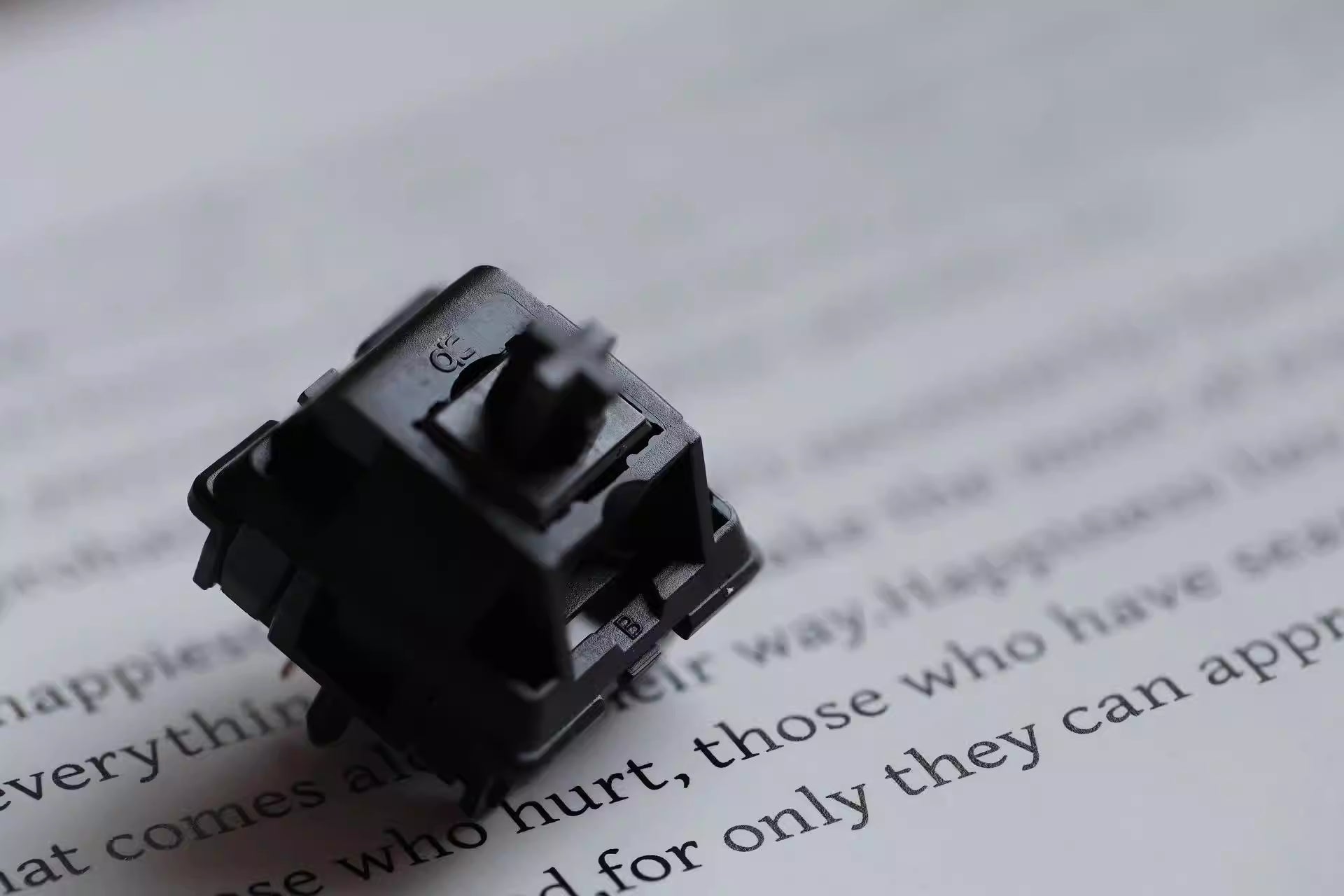

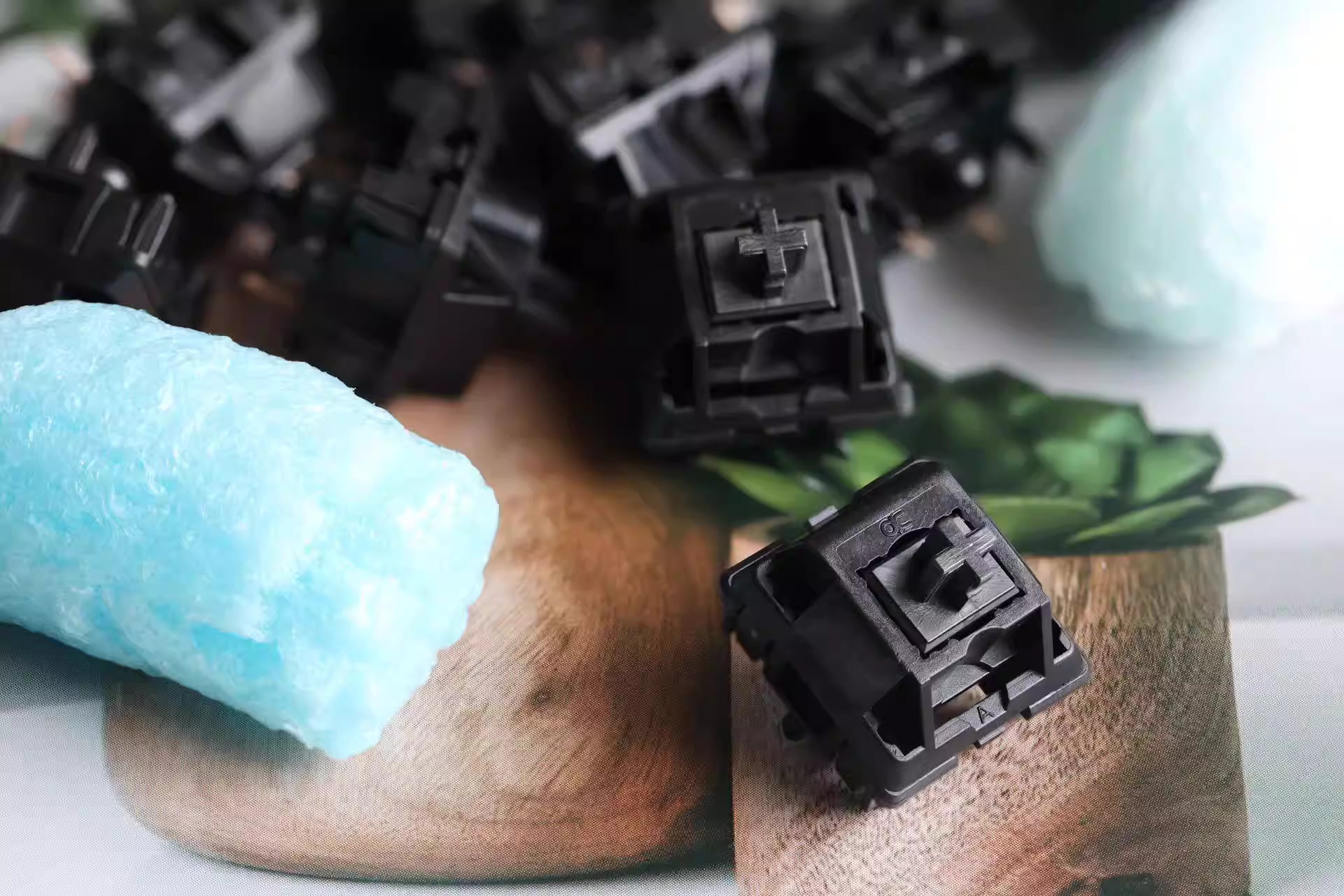

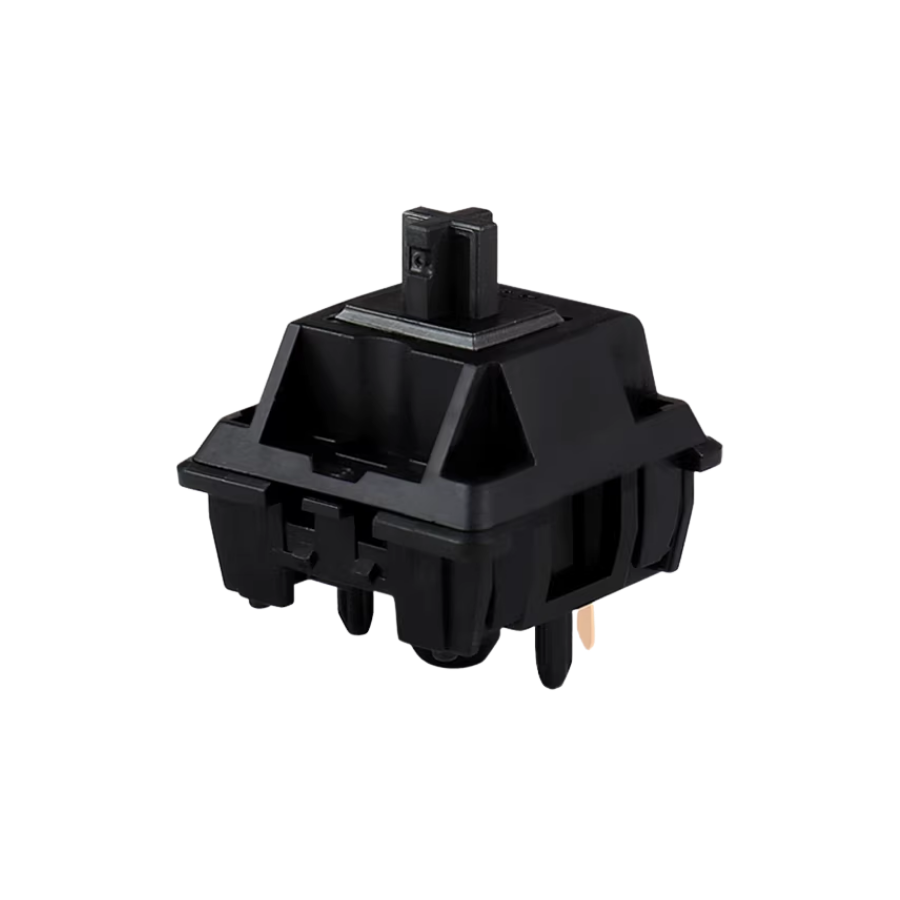

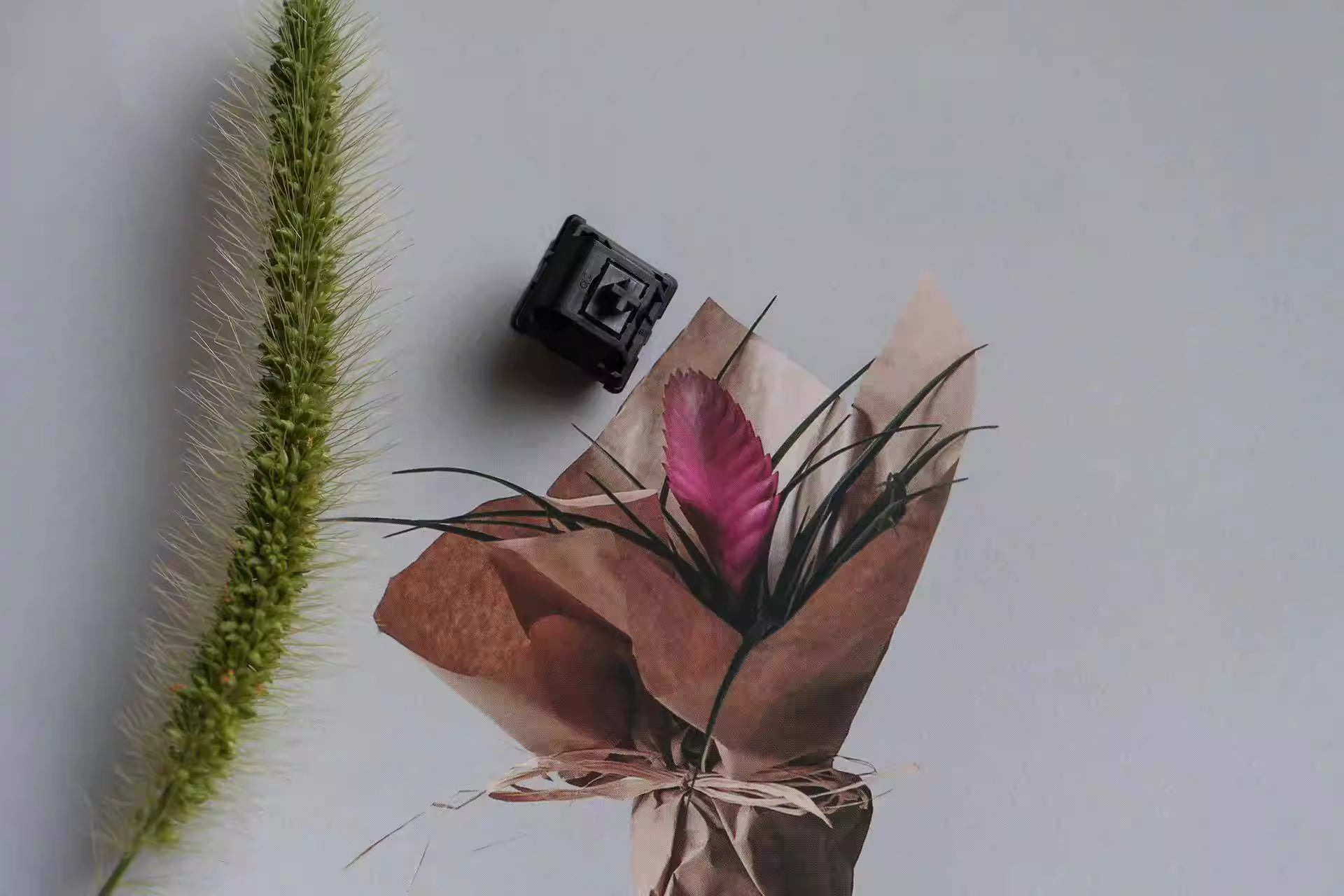

Duhuk QK01 (58g) – Linear Mechanical Keyboard Switch

Product Positioning

The QK01 Switch is a 5-pin linear mechanical keyboard switch designed for Hi-Fi sound and ultra-smooth typing. With a 42g actuation force and 58g bottom-out force, it delivers light, responsive keystrokes, ideal for users who prioritize clean, consistent sound and effortless typing performance.

Core Parameters

• Switch Type: 5-pin linear mechanical switch

• Actuation Force: 42±2gf

• Bottom-out Force: 58±2gf

• Actuation Travel: 2.0±0.2mm

• Total Travel: 3.5±0.2mm

• Spring Specification: 22mm single-stage extended spring (Korean KOS 304 stainless steel)
